How to Build a Physical Computing Project with Raspberry Pi combines sensors, coding, and creativity to make devices that sense their surroundings.
Table of Contents
How to Build a Physical Computing Project with Raspberry Pi
1. Get the Hardware Together

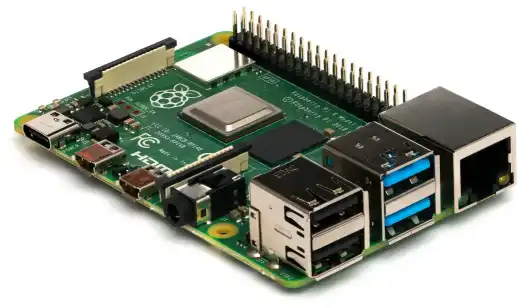

- Raspberry Pi (any model with GPIO pins; Pi 4 is comfy, but even a Pi Zero works)
- MicroSD card with Raspberry Pi OS installed
- Breadboard + jumper wires (because short circuits aren’t cute)
- Components depending on your goal:
- LEDs + resistors (blinky lights, the “Hello World” of hardware)
- Buttons (for input)
- Sensors (temperature, motion, light)
- Motors/servos (to make stuff move)
2. Prep the Pi
- Flash Raspberry Pi OS to the SD card (use Raspberry Pi Imager).
- Boot up, run updates:
sudo apt update && sudo apt upgrade -y - Enable GPIO and I²C/SPI if needed:
sudo raspi-config
3. Wire Something Simple
Example: LED + Button
- Connect LED (with resistor) to GPIO pin 18.
- Connect button to GPIO pin 23.
- Ground everything. (Seriously, or you’ll fry it.)
4. Write the Code
Here’s a baby script in Python using gpiozero:
from gpiozero import LED, Button
from time import sleep
led = LED(18)
button = Button(23)
while True:
if button.is_pressed:
led.on()
else:
led.off()
sleep(0.1)
Run it:
python3 button_led.py
Press the button, watch the LED light up, and feel the small rush of playing god.
5. Scale Up
- Add sensors: motion → trigger light, temp → fan, light sensor → night lamp.
- Add outputs: motors, buzzers, displays.
- Build IoT projects: send data to a web dashboard, control over your phone.
6. Safety & Sanity Checks
- Always use resistors with LEDs.
- Don’t power motors directly from GPIO (use transistor or driver board).
- Document your wiring so Future You doesn’t hate Present You.
7. Project Ideas
- Smart plant watering system 🌱
- Motion-sensing night light 💡
- Retro game controller 🎮
- Automated pet feeder 🐾
